Features

Specifications

LED Chip: Lumileds/Osram Chip

CRI: >70 (>80, >90 Available)

Efficiency: 135-150lm/W

CCT: 5000K (3000K, 4000K, 5700K Available)

BEAM ANGLE: 12°, 16°, 30°, 60°, Asy 25*130°,60*130°,40*130°

POWER FACTOR (Typ): ≥0.97

Material: Aluminum+PC+Glass

Color: Black/Grey

LED Driver: Inventronics Driver

INPUT VOLTAGE: 100-227V/AC, 50-60Hz

IK Grade: IK09

IP Rating: IP66

SURGE PROTECTION: 10kV

Warranty: 5 Years

Highlight:

IK09 Spotlight LED Lights

IP66 Spotlight LED Lights

600W Outdoor Spotlight Fixtures

Basic Infomation

Place of Origin: China

Brand Name: LUXSUN

Certification: CE ENEC CB SAA

Model Number: LUX-SP2-1800/2040

Payment & Shipping Terms

Packaging Details: 799*181*617mm

Delivery Time: 15-20days

Payment Terms: T/T, L/C

Supply Ability: 5000PCS/Month

Gallery

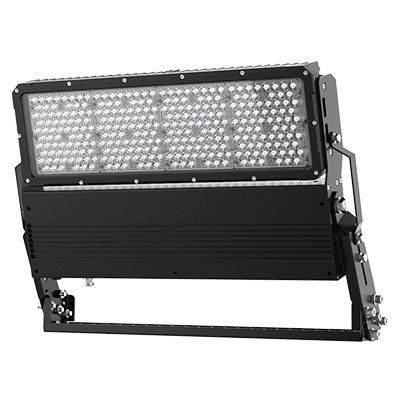

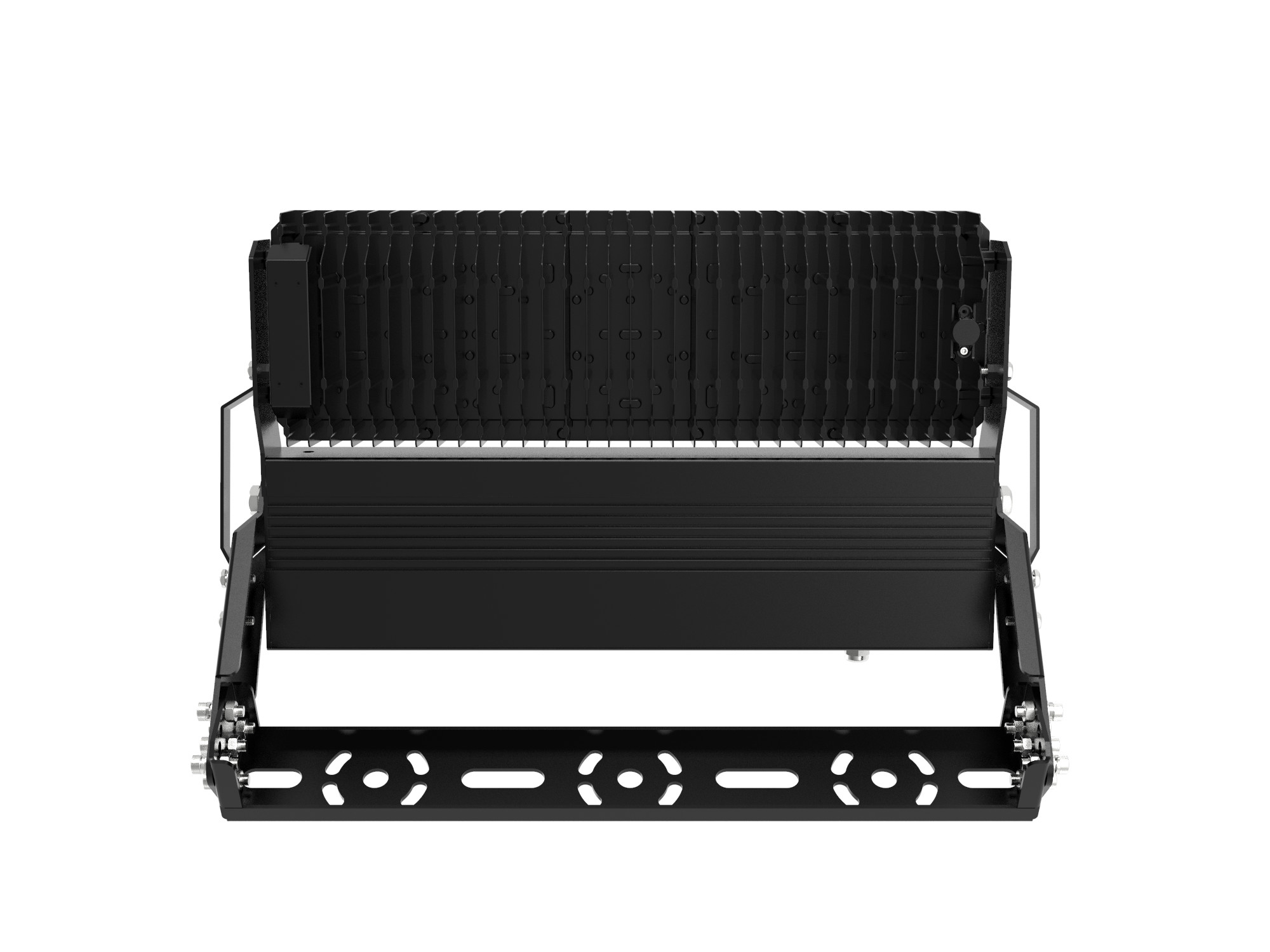

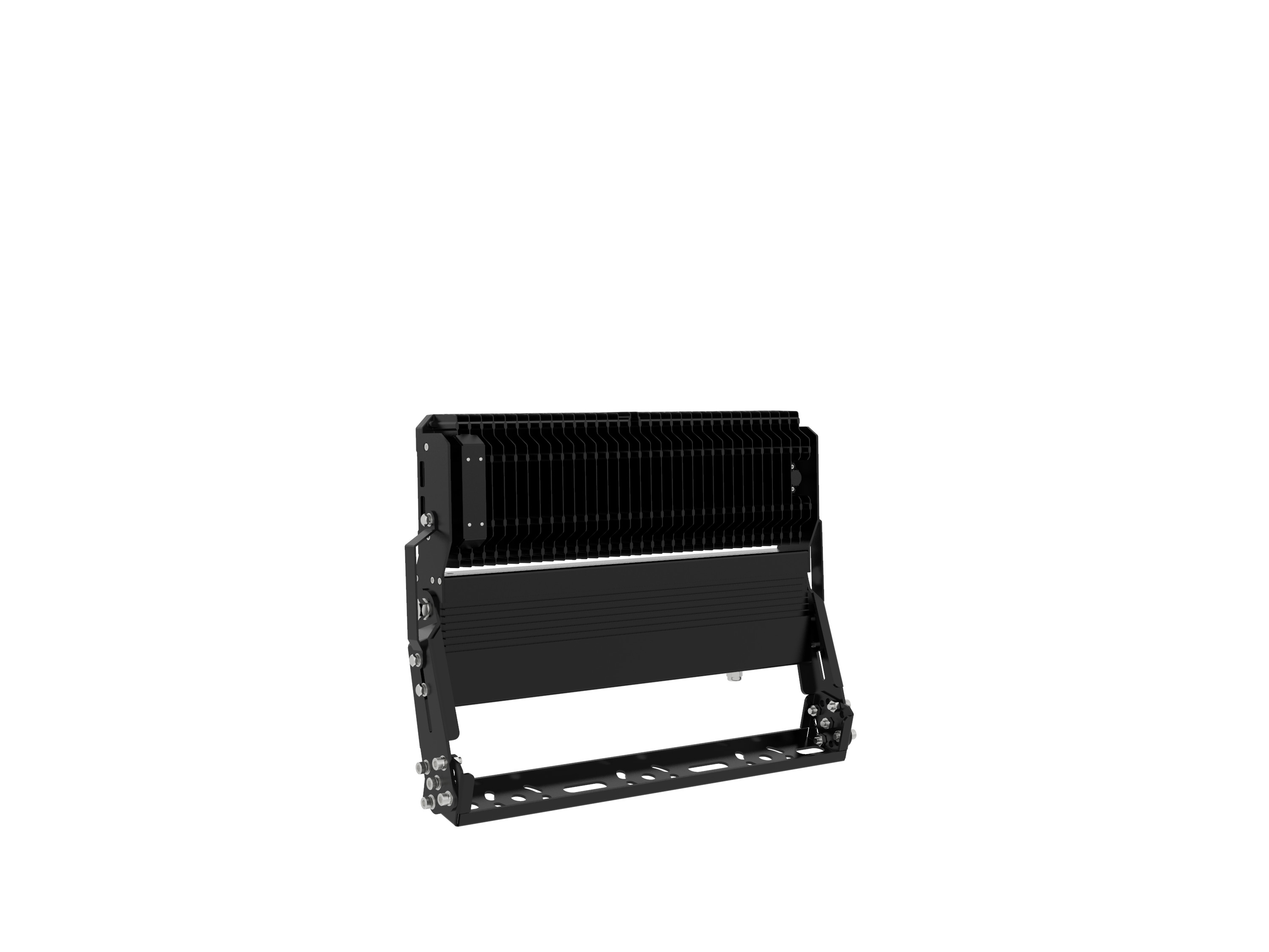

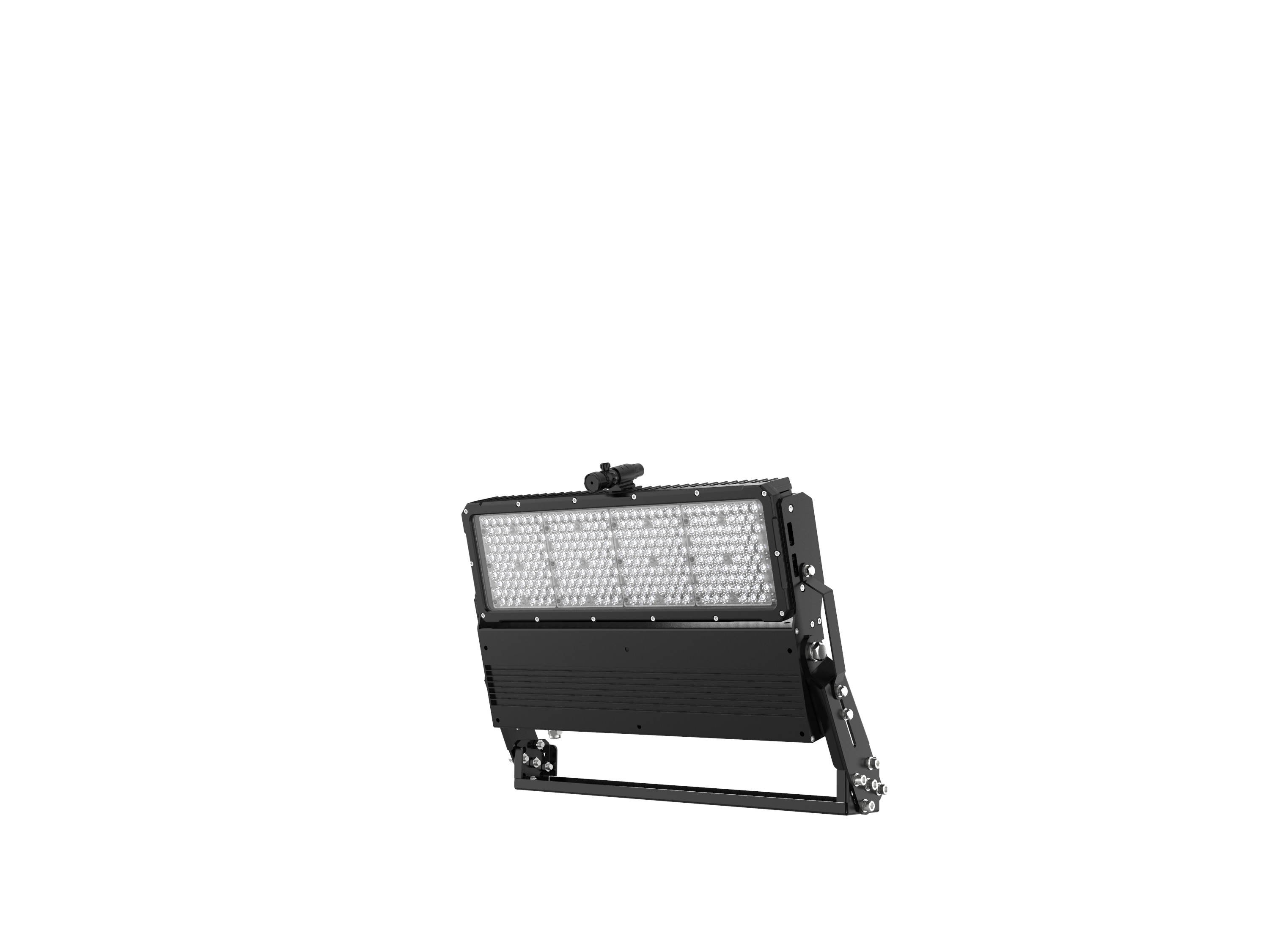

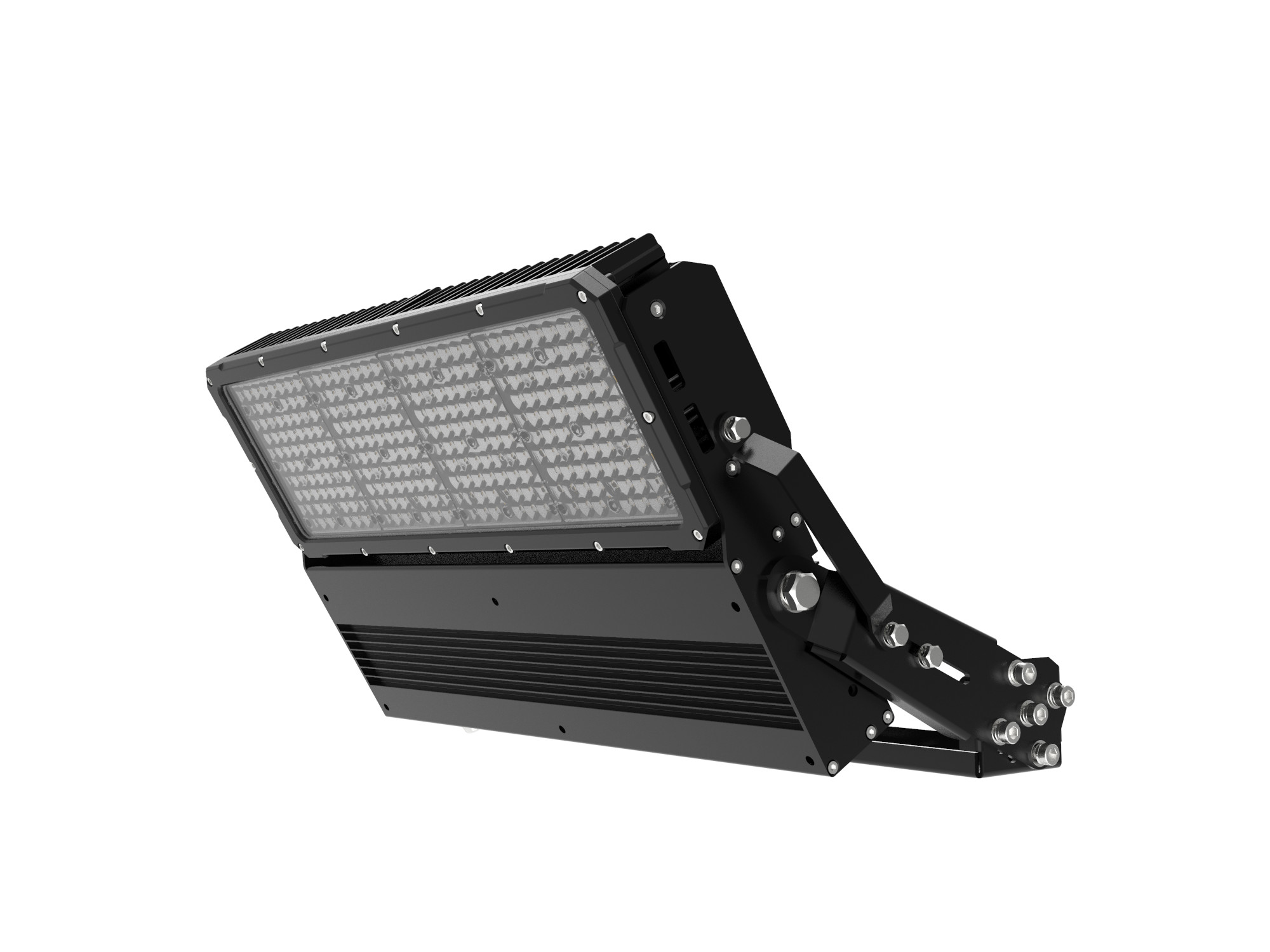

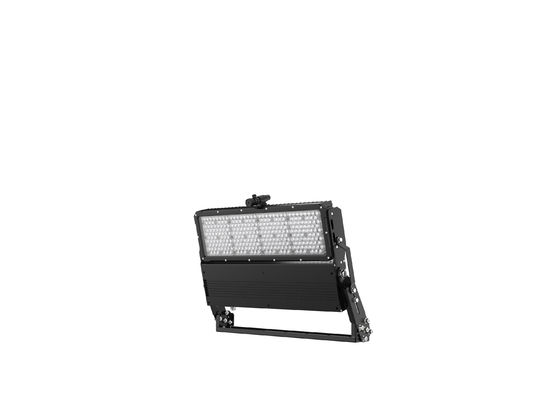

IK09 IP66 Spotlight LED Lights , 600W Outdoor Spotlight Fixtures

Product Description

OPSPORT SERIES LED 600W IK09 IP66 LOW WINDAGE HIGH EFFICIENCY LED SPORT LIGHTING

Name: IK09 IP66 Spotlight LED Lights , 600W Outdoor Spotlight Fixtures
Brand: LUXSUN
SKU: LUX-SP2-1800/2040
Rating: 4.8 (101 reviews)

Opsport is a highly efficient floodlight for sports and large area lighting. Available with a wide range of lumen outputs from47,340lm –299,880lm, multiple distribution types and accessories enable efficient and accurate designs achieving the highest levels of uniformity. Every aspect of this product is highly engineered and built to last in the harshest of environments

The OPSPORT SERIES LED 600W IK09 IP66 is a high-efficiency LED sport lighting fixture designed for illuminating outdoor sports fields, stadiums, and other large venues. With a low windage design, this LED sport light produces minimal wind resistance, reducing the weight and load on the mounting structure.

The OPSPORT SERIES LED 600W is rated IK09 for impact resistance and IP66 for water and dust resistance, making it suitable for harsh outdoor environments. It delivers high-quality illumination with a luminous efficacy of up to 160 lumens per watt, providing bright and efficient illumination for sports activities.

The OPSPORT SERIES LED 600W is equipped with advanced thermal management technology, ensuring that the LED chips operate at optimal temperatures, resulting in a long lifespan of up to 100,000 hours. It also features a flexible mounting system, allowing it to be installed on poles, walls, or other structures.

Main Features

• Massive light output of up to 299,880lm

• Ultra-high system efficiency of up to 150lm/W

• High quality Lumileds LED Chip and Inventronics Driver

• Long >10,2000 hours lifespan to L70

• Professionally Designed True Asymmetric Flat Optics

• Tough IP66 and IK09 construction

• Suitable for coastal areas (with optional 316 stainless steel bracket)

• High quality AkzoNobel anti-corrosion Powder-coating

High luminous efficacy of up to 160 lumens per watt, providing bright and efficient illumination for outdoor sports fields and stadiums.
Low windage design that minimizes wind resistance, reducing the weight and load on the mounting structure.
Rated IK09 for impact resistance and IP66 for water and dust resistance, making it suitable for harsh outdoor environments.
Advanced thermal management technology that ensures optimal operating temperatures for LED chips, resulting in a long lifespan of up to 100,000 hours.
Flexible mounting system that allows for easy installation on poles, walls, or other structures.

Product Parameter

Part No.	LUX-SP-320/480/550	LUX-SP-600/680	LUX-SP-800/960/1100	LUX-SP-1200/1360	LUX-SP-1440/1650	LUX-SP-1800/2040
	One Module	One module	Two modules	Two modules	Three modules	Three modules
Power Range	320W/480W/550W	600W/680W	800W/960W/1100W	1200W/1360W	1440W/1650W	1800W/2040W
Input Voltage	AC100-277V 50-60Hz,PF>0.97
Angle	12°/16°/30°/60°/25130°/40130°/60*130°/
Luminous Efficacy	Up to 150lm/W(±5%)
CCT	5000K(3000K,4000K,5700K, available)
CRI	>70(>80,>90available)
Dim options	0-10v/Dali/DMX
IP	66
Operating temperature	-30°C to + 45°C
LED Chips	Osram(12°/16°) & Lumileds 5050 (60°/25130°/40130°/60*130°)
Driver	INVENTRONICS
Color	BLACK & GREY
Lifespan	>10,2000 hours lifespan to L70
Warranty	5 years
